Mercedes W177/C118, A45/CLA45 AMG Carbon Fibre Performance Air Intake

Unlock the M139 in your Mercedes-AMG A45 or CLA45 with this full carbon fibre performance air intake system — a complete replacement for the restrictive factory airbox, built as a sealed carbon enclosure so the engine draws cold air from the front of the bay instead of heat off the turbocharger.

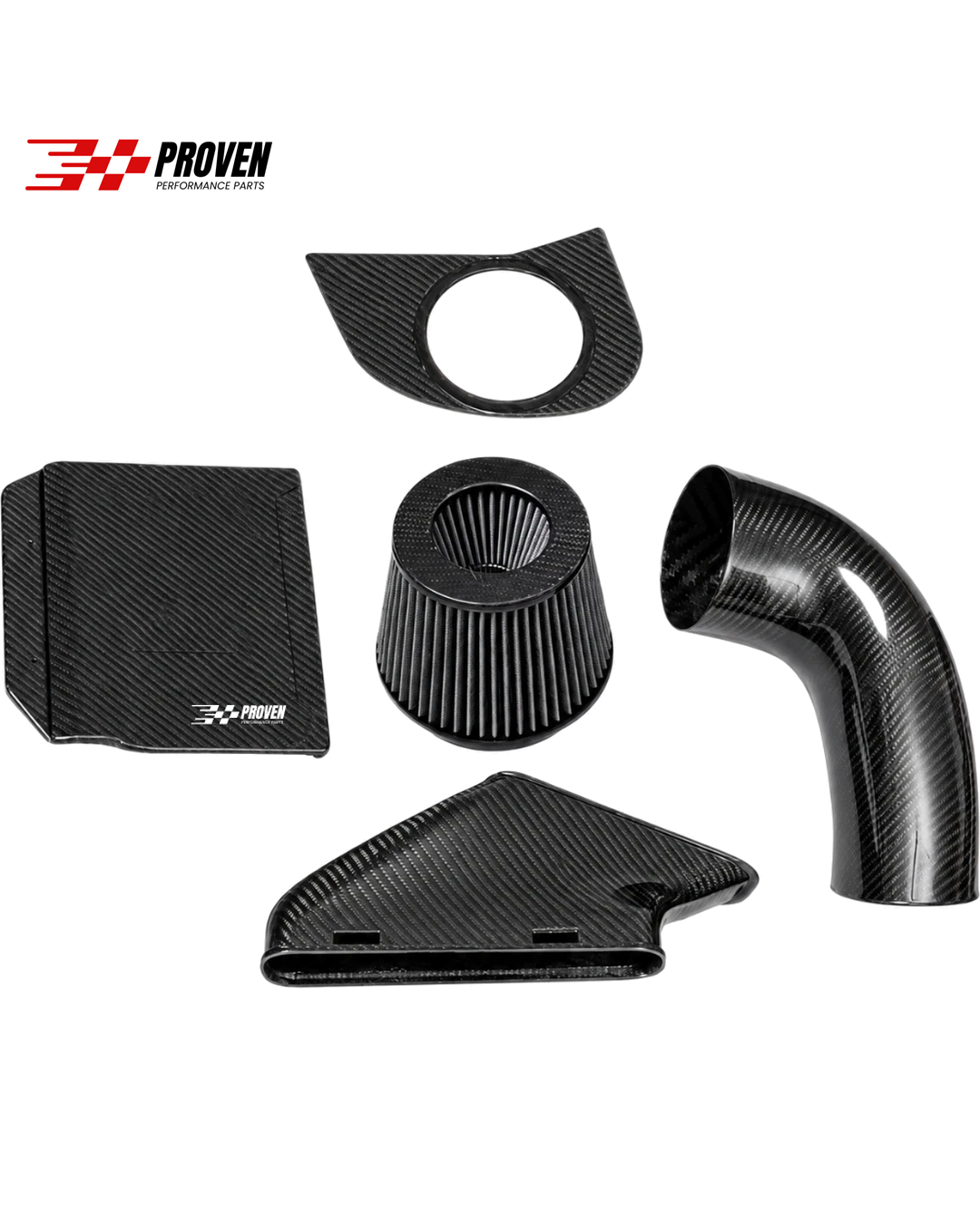

The M139 is the most powerful series-production four-cylinder ever built, and it is fed through a plastic airbox designed around drive-by noise limits rather than airflow. This system replaces it end to end: a carbon enclosure and lid, a carbon intake elbow running to the turbo inlet, a shaped carbon heat shield separating the intake from the engine bay, a carbon turbo inlet trim ring, and a large high-flow cone filter in place of the factory flat panel.

Key Features:

Full Carbon Fibre Construction
Enclosure, lid, intake elbow, heat shield and turbo inlet ring are all carbon, finished in a gloss twill weave under a UV-protected clear coat.

Sealed Airbox Design
The filter sits inside a closed carbon box rather than open to the engine bay, so it keeps drawing from the factory cold-air duct instead of pulling hot air off the turbo.

High-Flow Cone Filter
A large cone filter with several times the surface area of the factory flat panel, washable and reusable rather than a service item you keep replacing.

Carbon Heat Shield Panel
A shaped panel between the intake and the engine bay. On the M139 the exhaust side faces the bulkhead and the turbo sits at the back of the head, so keeping that heat away from the intake charge matters more than on most engines.

Carbon Intake Elbow
A smooth moulded bend to the turbo inlet in place of the factory corrugated tube, removing the ridges the standard part relies on for flexibility.

Direct Bolt-On Fitment
Mounts at the factory airbox locations with no cutting or fabrication, and the standard airbox can be refitted at any time.

Performance Benefits:

Improved airflow for increased horsepower and torque

Sharper throttle response and faster turbo spool

Cooler, denser intake charge and less heat soak on a hot day

Lighter than the factory plastic airbox assembly

A markedly better induction and turbo note

The single most visible upgrade in the engine bay

Vehicle Fitment:

Mercedes-AMG A45 and A45 S - W177 (2019-2025)

Mercedes-AMG CLA45 and CLA45 S - C118 (2019-2025)

Mercedes-AMG GLA45 S - H247 (2020-2025)

2.0L Turbocharged M139 Engine

Both the standard and S versions of each car are covered — they share the same engine bay and the same airbox. Select your car from the dropdown above.

M139 Only - This Will Not Fit an Earlier A45:

The M139 turns the cylinder head around compared with the M133 that came before it, putting the intake at the front and the exhaust against the bulkhead. The airbox cavity is a completely different shape as a result.

This intake fits the W177, C118 and H247 cars. If you have a W176 A45 or C117 CLA45, that is the M133 and it takes our W176/C117 carbon intake instead.

Why Choose Carbon Fibre:

Carbon fibre is light, stiff and far less conductive than the plastic it replaces, which is exactly what an intake wants — it holds its shape, it does not radiate engine bay heat into the filter, and it looks the part. On an engine bay as tightly packed as the A45 and CLA45, keeping heat out of the intake is a real gain rather than a styling claim.

Please Note:

An ECU tune is recommended to realise the full benefit of the intake, though the induction note and throttle response improve without one. The filter is washable and reusable and should be cleaned and re-oiled at normal service intervals.
